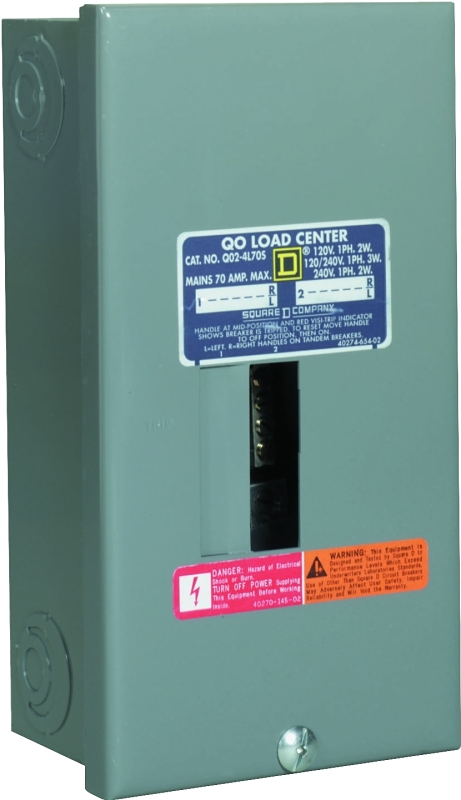

Square D QO QO24L70SCP Load Center, 70 A, 2 -Space, 4 -Circuit, Main Lug, NEMA 1 Enclosure, Plug Mounting, Gray
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 12 to 3 14 to 4 AWG
- Color: Gray
- Cover/Lid Type: Surface
- Model #: QO24L70SCP
- UPC #: 047569804366
- SKU: 6475966
Product Overview
Product Details
Main lug load center, intended for fixed applications. 70 A, 2 space/4 circuits. Surface mount cover with door and a NEMA type 1 enclosure for indoor use. Single phase unit, features a copper bus for conductivity and is rated for up to 10,000 SCCR. ANSI certified and UL listed.Item Specifications
| Breaker/Load Center Type | Main Lug |
|---|---|
| Bus Bar Material | Aluminum |
| Cable Size | 12 to 3 14 to 4 AWG |
| Color | Gray |
| Cover/Lid Type | Surface |
| Current Rating | 70 A |
| Enclosure Type | NEMA 1 |
| Finish | Baked Enamel |
| Interrupt Rating | 65 kA |
|---|---|
| Mounting Type | Plug |
| Number of Circuits | 4 |
| Number of Phases | 1 |
| Number Of Spaces | 2 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
