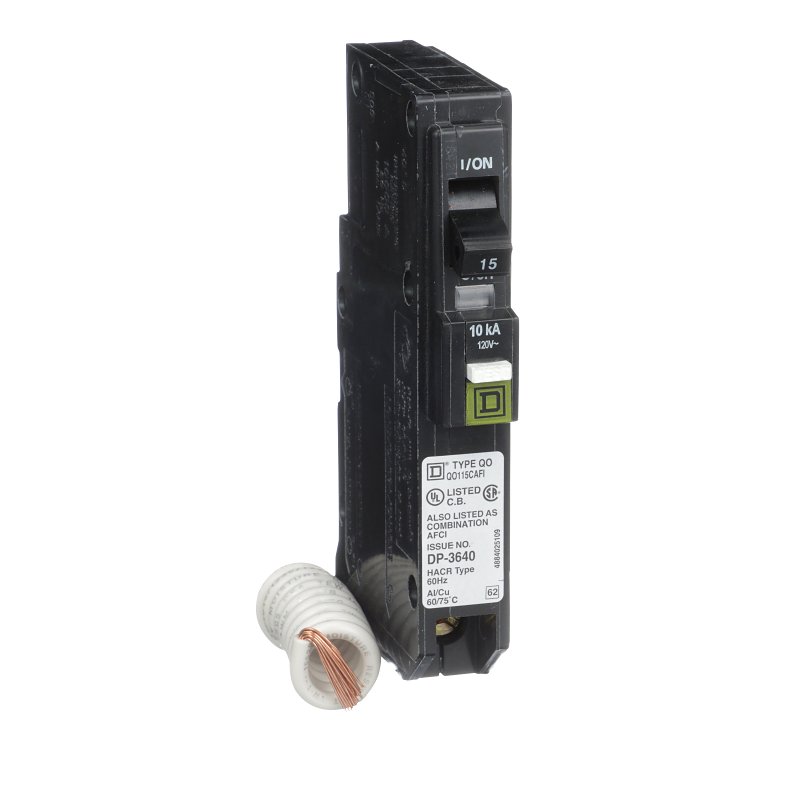

Square D QO QO115CAFIC Circuit Breaker, AFCI, 15 A, 1 -Pole, 120 V, Fixed Trip, Plug Mounting
- Current Rating: 15 A
- Dimensions: 2-29/32 in L x 3/4 in W x 4-3/4 in H
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Number of Phases: 1
- Model #: QO115CAFIC
- UPC #: 785901610441
- SKU: 9085606
- Application: For QO load centers, NQ and NQOD panelboards/interiors and speed-D switchboard distribution panels
Product Overview
Product Details
Combination CAFCI 3/4 in single-pole circuit breaker, designed for overload and over-current protection of an electrical system. Thermal-magnetic tripping mechanism. Designed to detect arcs that are caused by damaged, aged or improperly used wires or cords and to disconnect the power. Visi-Trip indicator to identify which circuit is out in the load center. With Time-Saver Diagnostics, advanced trip indication technology, identifying the type of fault that last occurred. 10kA interrupting rating. Uses one space per breaker. 120 VAC. UL listed. Carded.Item Specifications
| Current Rating | 15 A |
|---|---|
| Dimensions | 2-29/32 in L x 3/4 in W x 4-3/4 in H |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Terminal Type | Pressure Contact |
|---|---|
| Trip Type | Fixed |
| Type | AFCI |
| Voltage Rating | 120 V |
| Wire Size | 12 to 8 14 to 8 AWG |
