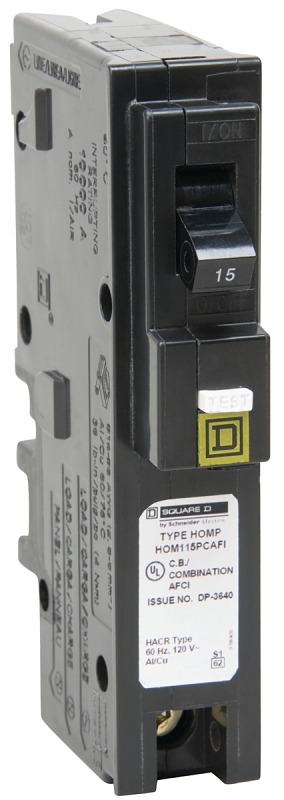

Square D HOM115PCAFIC Circuit Breaker, CAFCI, Mini, 15 A, Plug, 1-Pole, 120 V
- Actuator Type: Magnetic Thermal
- Current Rating: 15 A
- Dimensions: 3.13 in H x 1 in W x 2.98 in D
- Interrupt Rating: 10 kA
- Mounting Type: Plug
- Model #: HOM115PCAFIC
- UPC #: 785901978787
- SKU: 6562789
- HomeLine_HOM115PCAFIC_Data_Sheet.pdf
- Application: For overload and short circuit protection
Product Overview
Product Details
Continuously monitors the circuit and quickly turns off the power (trips) when a dangerous condition is detected. Equipped with a diagnostic feature known as time-saver diagnostics which indicates the type of fault that last occurred on the circuit.Item Specifications
| Actuator Type | Magnetic Thermal |
|---|---|
| Current Rating | 15 A |
| Dimensions | 3.13 in H x 1 in W x 2.98 in D |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 1 |
| Number Of Spaces | 1 |
|---|---|
| Operating Frequency | 50/60 Hz |
| Operating Temperature | 104 deg F |
| Terminal Type | Screw Clamp |
| Type | CAFCI Mini |
| Voltage Rating | 120 V |
| Wire Size | 14 to 8 AWG |
