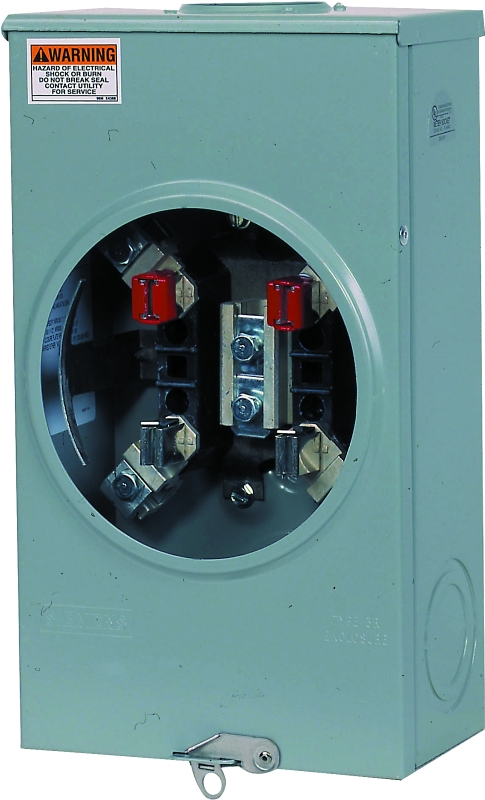

Siemens SUAT317-0G Meter Socket, 1-Phase, 200 A, 600 V, 4-Jaw, Overhead Cable Entry, NEMA 3R Enclosure, Surface
- Cable Entry: Overhead
- Current Rating: 200 A
- Dimensions: 5.8 in H x 8.9 in W x 16.8 in D
- Enclosure Type: NEMA 3R
- Material: Steel
- Model #: SUAT317-0G
- UPC #: 783643234192
- SKU: 6929582
- Application: For residential applications
Product Overview
Product Details
Single phase, 3-wire, 4-jaw, 600 V maximum. Jaws fabricated from high conductivity, tin-plated, copper alloy. Insulating jaw support blocks of high impact, non-tracking thermoset polyester. Galvanized steel enclosure. Safety guides reduce chances of accidental contact and aligns meter in sock. Uses RX style hub (not included). Provision for 5th jaw and closure plate included, no bypass. UL listed.Item Specifications
| Cable Entry | Overhead |
|---|---|
| Current Rating | 200 A |
| Dimensions | 5.8 in H x 8.9 in W x 16.8 in D |
| Enclosure Type | NEMA 3R |
| Material | Steel |
| Mounting Type | Surface |
| Number of Jaws | 4 |
|---|---|
| Number of Phases | 1 |
| Number Of Positions | 1 |
| Voltage Rating | 600 V |
| Wire Size | 6 AWG to 350 kcmil |
