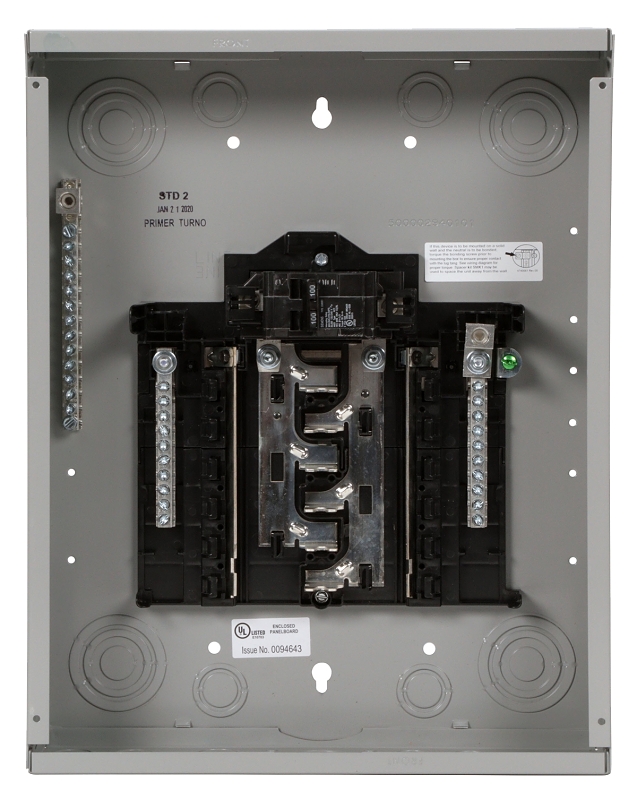

Siemens SN SN1224B1100 Assembled Load Center, 100 A, 12 -Space, 24 -Circuit, Main Breaker, Plug-On Neutral, Gray
- Breaker/Load Center Type: Main Breaker Plug-On Neutral
- Bus Bar Material: Aluminum
- Color: Gray
- Current Rating: 100 A
- Enclosure Type: NEMA 1
- Model #: SN1224B1100
- UPC #: 804766703218
- SKU: 7413917
- Application: For indoor use
Product Overview
Product Details
SN Series load center is the smart choice when value and quick installation are of the highest priority. The SN Series load centers include labor saving features such as the ability to accept plug-on neutral breakers, patented Insta-wire and mounting trim tabs. These exclusive features make the SN Series load center the best load center for the value minded contractor.Item Specifications
| Breaker/Load Center Type | Main Breaker Plug-On Neutral |
|---|---|
| Bus Bar Material | Aluminum |
| Color | Gray |
| Current Rating | 100 A |
| Enclosure Type | NEMA 1 |
| Includes | (1) Factory Installed Ground Bar |
| Interrupt Rating | 22 kA |
| Mounting Type | Flush Surface |
|---|---|
| Number of Circuits | 24 |
| Number of Phases | 1 |
| Number Of Spaces | 12 |
| Temperature Rating | 60 to 75 deg C |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3-Wire |
