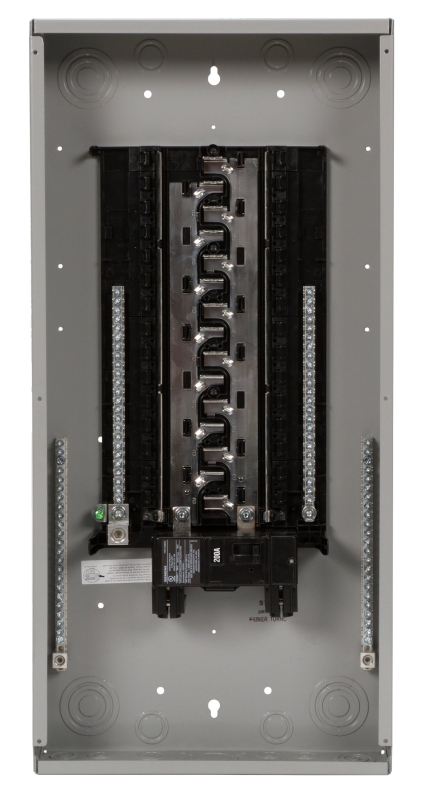

Siemens PN PN3048B1200C Assembled Load Center, 200 A, 30 -Space, 48 -Circuit, Main Breaker, Plug-On Neutral, Gray
- Breaker/Load Center Type: Main Breaker Plug-On Neutral
- Bus Bar Material: Copper
- Color: Gray
- Current Rating: 200 A
- Enclosure Type: NEMA 1
- Model #: PN3048B1200C
- UPC #: 804766702884
- SKU: 1977537
- Application: For indoor use
Product Overview
Product Details
PN Series load centers - a new high-quality and feature rich line of load center products meets applications for virtually every need. The PN Series provide maximum flexibility in combination with labor saving features to aid the contractor while installing the product. PN load centers accept the plug-on neutral breakers, patented Insta-wire neutral/ground system, convertibility, copper bussing and mounting tabs on the trim - the features that we specifically engineered to decrease installation time and increase flexibility.Item Specifications
| Breaker/Load Center Type | Main Breaker Plug-On Neutral |
|---|---|
| Bus Bar Material | Copper |
| Color | Gray |
| Current Rating | 200 A |
| Enclosure Type | NEMA 1 |
| Includes | (2) Factory Installed Ground Bars |
| Interrupt Rating | 22 kA |
| Mounting Type | Flush Surface |
|---|---|
| Number of Circuits | 48 |
| Number of Phases | 1 |
| Number Of Spaces | 30 |
| Temperature Rating | 60 to 75 deg C |
| Voltage Rating | 120/240 VAC |
| Wiring Configuration | 3-Wire |
