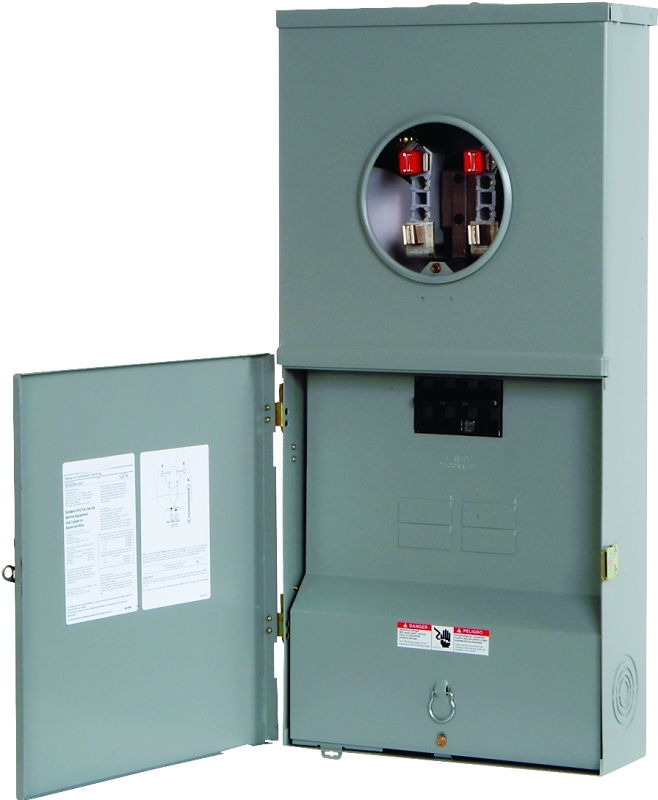

Siemens MC0408B1200T Series Meter Combination Load Center, Ring Cover/Lid, 200 A, 4-Space, 4-Jaw, 8-Circuit
- Bus Bar Material: Copper
- Cover/Lid Type: Ring
- Current Rating: 200 A
- Enclosure Type: NEMA 3R
- Interrupt Rating: 22 kA
- Model #: MC0408B1200T
- UPC #: 783643510616
- SKU: 9776865
Product Overview
Product Details
Combination meter socket. 200 A main breaker installed, Single phase, 3-wire, Insta-Wire⢠neutrals. Four spaces and eight circuits. 120/240 V. 22,000 AIC rating. Four jaws. Tin-plated copper bus bars. NEMA type 3R outdoor enclosure. Overhead or underground feed. Feed thru lugs provided. Key hole shaped mounting holes for easy hanging. Deadfront pull ring and side hinge door. Captive dead front screw. RX style hub sold separately. UL listed.Item Specifications
| Bus Bar Material | Copper |
|---|---|
| Cover/Lid Type | Ring |
| Current Rating | 200 A |
| Enclosure Type | NEMA 3R |
| Interrupt Rating | 22 kA |
| Mounting Type | Surface |
| Number of Circuits | 8 |
|---|---|
| Number of Jaws | 4 |
| Number of Phases | 1 |
| Number Of Spaces | 4 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
