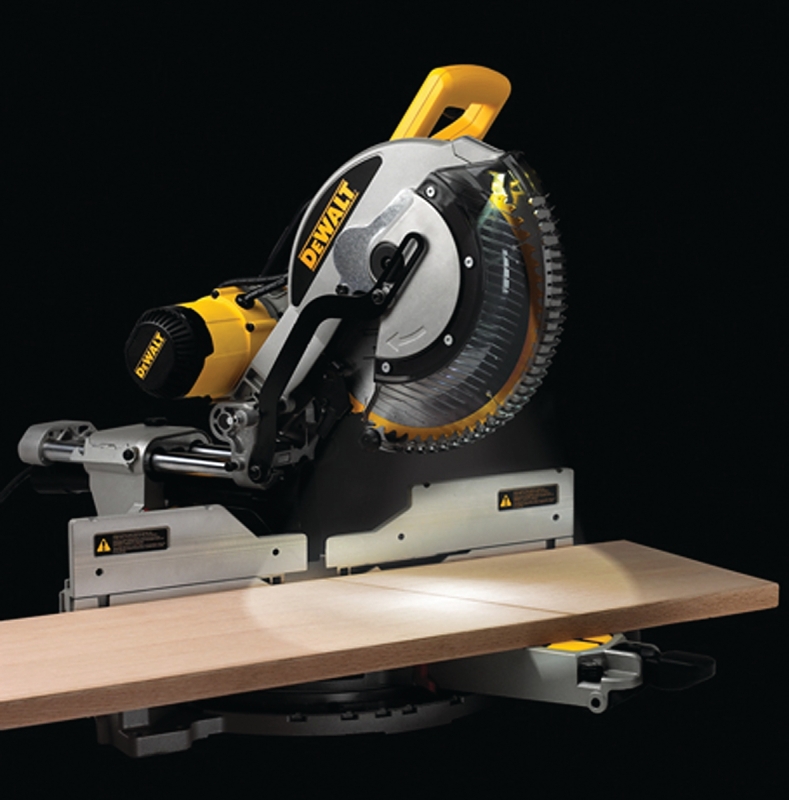

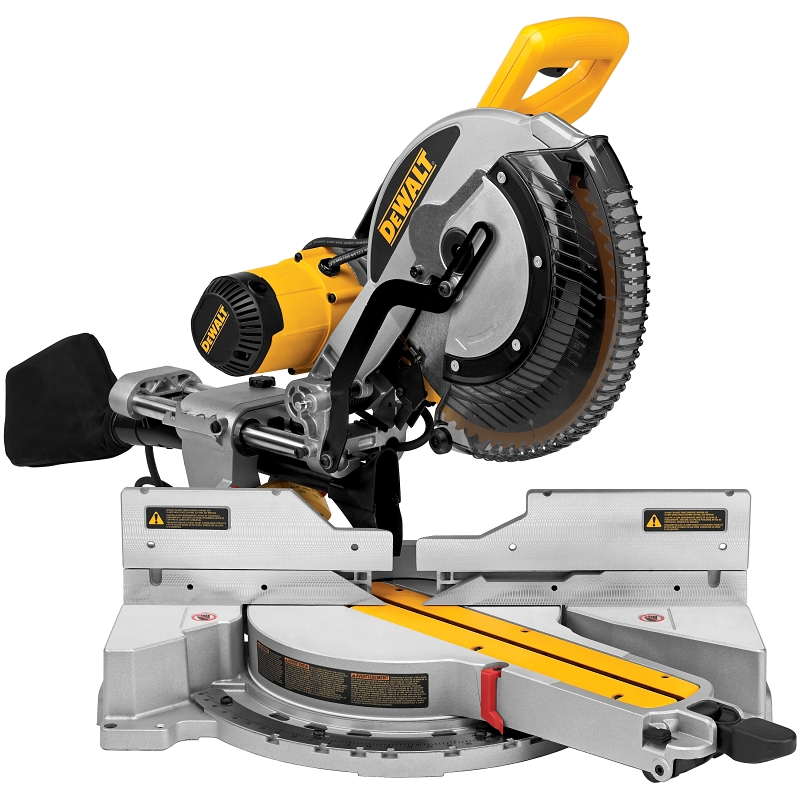

SAW MITER SLID DBL BEVL 12IN

Product Details

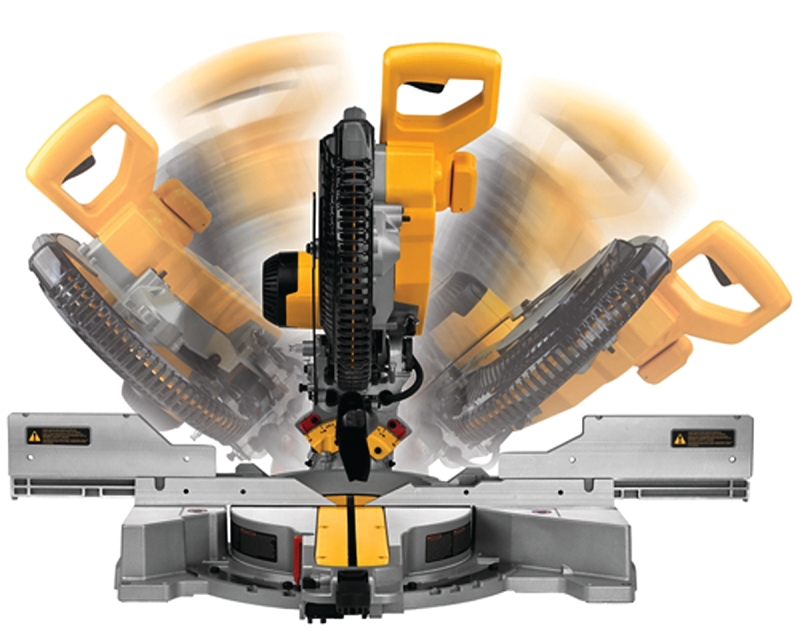

Adjustable stainless steel miter detent plate with 10-positive stops delivers repeatable accuracy and worksite durability. Tall sliding fence supports crown molding up to 6-5/8" nested and base molding up to 6-1/2" vertically against the fence while easily sliding out of the way for bevel cuts. Single lever action double bevel design allows saw to easily bevel left and right 0-48 degree with positive stops at 0, 22.5, 33.9 and 45 degree in both directions permitting user to flip the saw and not the material. Back fence design delivers ability to cut 2 x 16" dimensional lumber at 90 degrees and 2 x 12" at 45 degrees. Precise miter system and machined base fence support deliver increased cutting accuracy. Innovative gearbox and belt-drive design for increased vertical cutting capacity. Miters 60 degrees to the left and 50 degrees to the right. Dual horizontal steel rails with clamping mechanism and linear ball bearings. Camlock miter handle with detent override. Compact and lightweight design for quick, easy transport and storage. For use with No.DW7187 Adjustable Miter Saw Laser System which delivers visibility of the cutting path. STANDARD EQUIPMENT: carbide blade, dust bag, blade wrench. SPECIFICATIONS: 15 amps, 3,800 RPM no load speed, 12" blade diameter, 5/8 or 1" arbor size, 6-1/2" vertical capacity baseboard against fence, 6-5/8" vertical capacity crown molding vertically nested, 16" horizontal capacity baseboard lying flat, 11-1/4" horizontal capacity crown molding lying flat, 2 x 14" (2 x 16" with back fence) 45-degree bevel cut capacity (dimensional lumber), 2 x 14" (2 x 16" with back fence) for 90-degree cross-cut capacity (dimensional lumber), 16" for 90-degree cross-cut capacity (max width), 2 x 12" max width for 45-degree miter-cut capacity (max height), 2 x 12" for 45-degree miter-cut capacity (max width). 53 lbs. tool weight. Stand Not Included.
