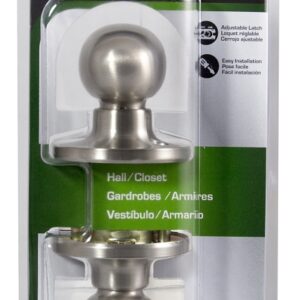

ProSource TYLP30V-PS Passage Knob, Metal, Satin Nickel, 2-3/8 to 2-3/4 in Backset, 1-3/8 to 1-3/4 in Thick Door
- Backset Size: 2-3/8 to 2-3/4 in
- Backset Type: Adjustable
- Bolt Throw Size: 12.5 mm
- Cross Bore Diameter: 2-1/8 in
- Design: Egg
- Model #: TYLP30V-PS
- UPC #: 045734656345
- SKU: 6997415
- Application: For closet and hall door
Product Overview
Product Details
For hall and closet doors, all interior doors where a simple latch is all that is required. Both knobs always free, no locking mechanism. Adjustable six-way (2-3/4 in and 2-3/4 in) radius corner fixed face plated latch. Radius round corner strike. Fits doors from 1-3/8 to 1-3/4 in thick.Item Specifications
| Backset Size | 2-3/8 to 2-3/4 in |
|---|---|
| Backset Type | Adjustable |
| Bolt Throw Size | 12.5 mm |
| Cross Bore Diameter | 2-1/8 in |
| Design | Egg |
| Door Thickness | 1-3/8 to 1-3/4 in |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 25.2 x 56.7 mm |
| Finish | Satin Nickel |
| Latch Type | 6-Way Adjustable |
|---|---|
| Material | Metal |
| Mounting Type | Screw |
| Projection Size | 64.4 mm |
| Strike Size | 44 x 57 mm |
| Strike Type | Full Lip Round Corner |
| Suitable for | 1-3/8 to 1-3/4 in THK Doors |
| Throw Length | 12.5 mm |
MORE DETAILS:
