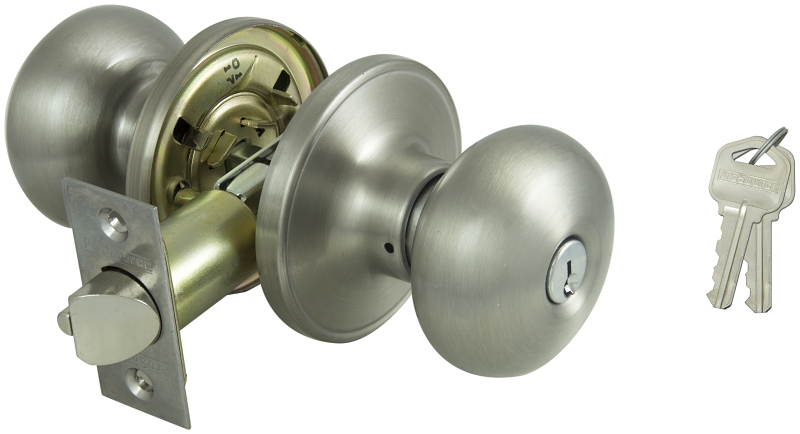

ProSource TFX200V-PS Entry Knob, Satin Nickel, KW1, KA3 Keyway, 3 Grade
- Backset Size: 2-3/8 2-3/4 in
- Bolt Throw Size: 1/2 in
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Design: TF
- Model #: TFX200V-PS
- UPC #: 045734655966
- SKU: 5634852
- Application: For keyed exterior doors
Product Overview
Product Details
For keyed exterior doors. Both knobs lock or unlock by key outside or turn button inside. All metal components. Solid steel latch assembly. Rust-resistant solid brass keyway for more security. Seamless 1-piece knob for extra strength. Square spindle for right or left handed installations. Easy installation. Cylinder drilled for construction keying. Door prep 2-1/8 in Crossbore, 1 in Edge Bore, 1 x 2-1/4 in Latch Face. Fits 1-3/8 to 1-3/4 in doors.Item Specifications
| Backset Size | 2-3/8 2-3/4 in |
|---|---|
| Bolt Throw Size | 1/2 in |
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 5-Pin |
| Design | TF |
| Dimensions | 478 x 265 x 283 mm |
| Door Thickness | 1-3/8 to 1-3/4 in |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1 x 2-1/4 in |
| Finish | Satin Nickel |
|---|---|
| Includes | Square 1/4 in Radius Corner Strike |
| Key Type | Keyed Alike |
| Keyway Type | KW1 KA3 |
| Latch Type | 6-Way |
| Number of Cylinders | 1 |
| Security Grade | 3 |
| Strike Size | 44.8 x 57 mm |
| Strike Type | Full Lip Round Corner |
