ProSource T9700BRA4V Entry Knob, Brass, K3, KW1 Keyway, 3 Grade
- Backset Size: 2-3/8 2-3/4 in
- Cross Bore Diameter: 2-1/8 in
- Cylinder Type: 5-Pin
- Design: Ball
- Dimensions: 438 x 400 x 203 mm
- Model #: T9700BRA4V
- UPC #: 045734655706
- SKU: 5099197
Product Overview
Product Details

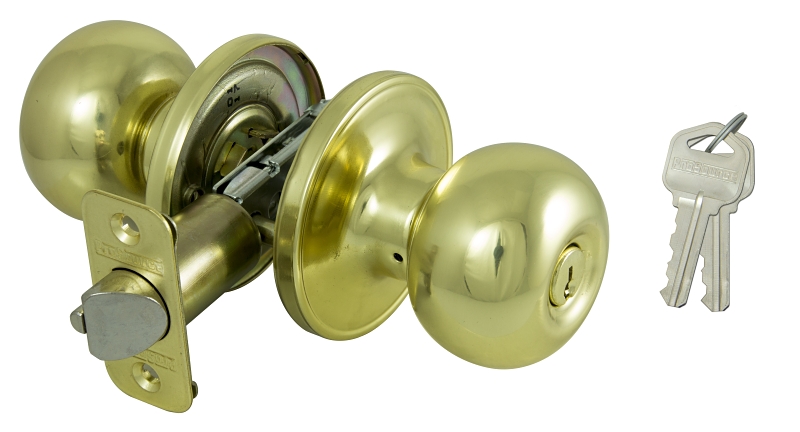

For keyed exterior doors. Both knobs lock or unlock by key outside or turn button inside. All metal components. Solid steel latch assembly. Rust-resistant solid brass keyway for more security. Seamless 1-piece knob for extra strength. Square spindle for right or left handed installations. Easy installation. Cylinder drilled for construction keying. Door prep 2-1/8 in Crossbore, 1 in Edge Bore, 1 x 2-1/4 in Latch Face. Fits 1-3/8 to 1-3/4 in doors.Item Specifications
| Backset Size | 2-3/8 2-3/4 in |
|---|---|
| Cross Bore Diameter | 2-1/8 in |
| Cylinder Type | 5-Pin |
| Design | Ball |
| Dimensions | 438 x 400 x 203 mm |
| Door Thickness | 1-3/8 to 1-3/4 in |
| Edge Bore Diameter | 1 in |
| Faceplate Size | 1 x 2-1/4 in |
| Includes | (2) Keys |
| Key Type | Keyed Alike |
|---|---|
| Keyway Type | K3 KW1 |
| Latch Type | Adjustable |
| Material | Brass |
| Number of Cylinders | 1 |
| Security Grade | 3 |
| Strike Size | 44.8 x 57 mm |
| Strike Type | Full Lip Round Corner |
