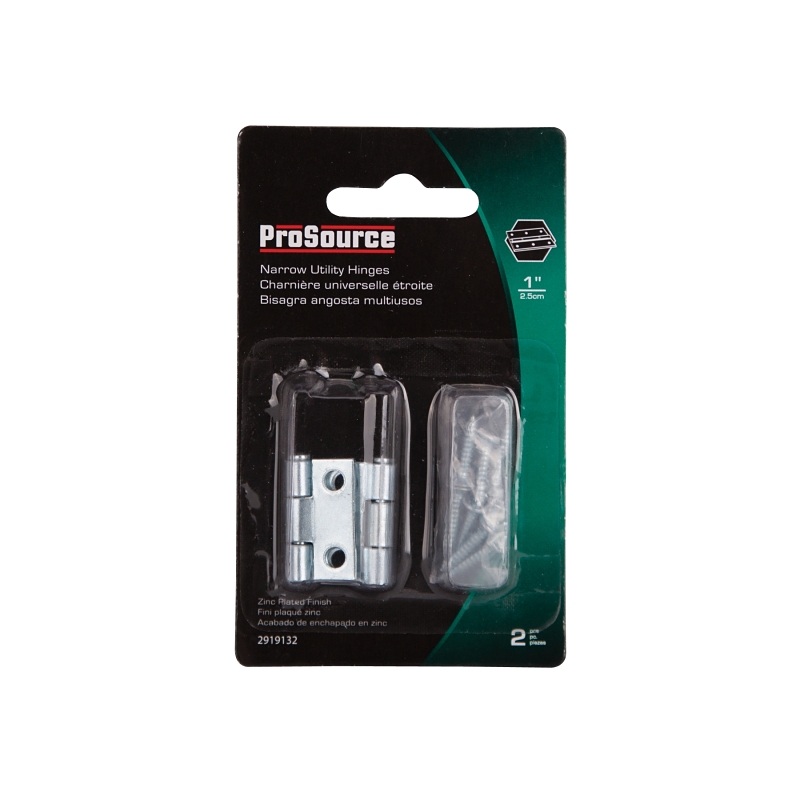

ProSource LR-052-PS Utility Hinge, Steel, Zinc, Removable Pin, 180 deg Range of Motion, Full Mortise Mounting
- Color: Silver
- Dimensions: 1 in L x 1 in W
- Door Leaf Height: 1 in
- Door Leaf Thickness: 1.3 mm
- Door Leaf Width: 3/8 in
- Model #: LR-052-PS
- UPC #: 045734647367
- SKU: 2919132
Product Overview
Product Details

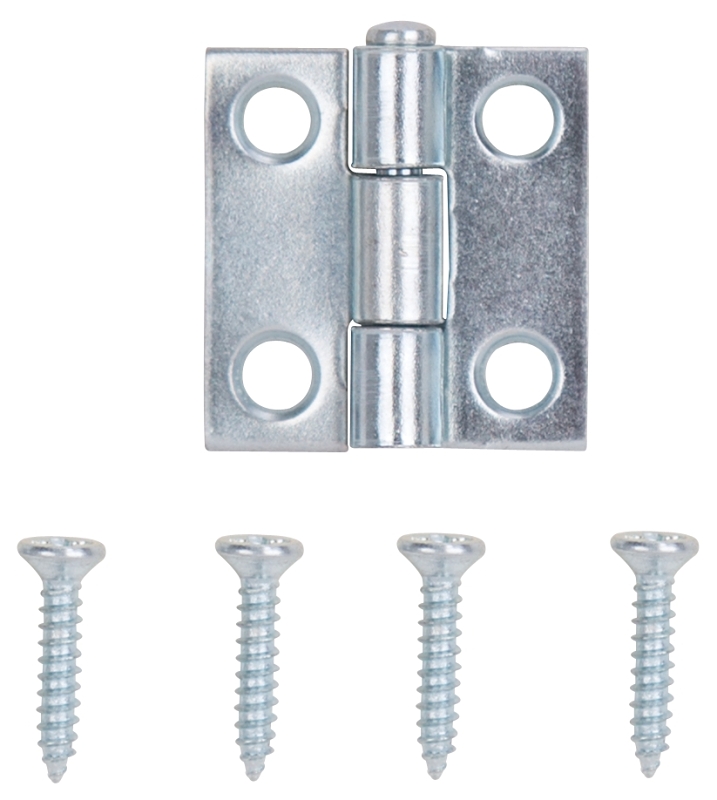

The ProSource utility hinges are constructed of high quality stainless steel ensuring durability and dependability. It has a 3 knuckle full mortise design and allows for easy installation or removal of lightweight doors. The screws are included.Item Specifications
| Color | Silver |
|---|---|
| Dimensions | 1 in L x 1 in W |
| Door Leaf Height | 1 in |
| Door Leaf Thickness | 1.3 mm |
| Door Leaf Width | 3/8 in |
| Finish | Zinc |
| Hole Spacing | 5/8 in |
| Includes | Mounting Hardware |
| Knuckle Diameter | 3.3 mm |
| Knuckle Length | 8 mm |
| Material | Steel |
|---|---|
| Mounting Hole Diameter | 4 mm |
| Mounting Type | Full Mortise |
| Number of Knuckles | 3 |
| Number of Mounting Holes | 4 |
| Pin Diameter | 3 mm |
| Pin Type | Removable |
| Range of Motion | 180 deg |
| Suitable for | Lightweight Doors |
| Weight Capacity | 7 (Pair) lb |
