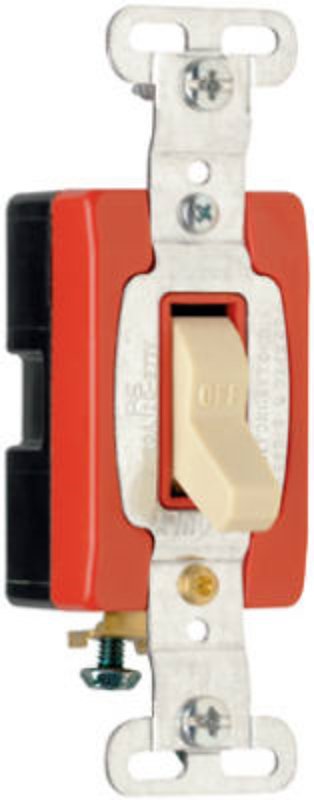

Pass & Seymour CSB20AC1ICC8 Series Switch, 1-Poles, Ivory/Red, 20 A, 120/277 VAC, Back Wire, Side Wire Terminal
- Actuator Type: Cam Spring
- Color: Ivory/Red
- Contact Material: Silver Cadmium Oxide
- Current Rating: 20 A
- Dielectric Strength: 1500 V
- Model #: CSB20AC1ICC8
- UPC #: 785007043938
- SKU: 0252551
- Application: For education, hospitality, institutional, lodging, multiple dwelling, office and retail applications
Product Overview
Product Details
These switches offer excellent value while meeting federal specification standards. External screw pressure plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard use and abuse.Item Specifications
| Actuator Type | Cam Spring |
|---|---|
| Color | Ivory/Red |
| Contact Material | Silver Cadmium Oxide |
| Current Rating | 20 A |
| Dielectric Strength | 1500 V |
| Dimensions | 1.32 in W x 1.073 in D x 3.281 in H |
| Housing Material | Glass-Reinforced Nylon |
|---|---|
| Number of Poles | 1 |
| Temperature Rating | -40 to 115 deg C |
| Terminal Type | Back Wire Side Wire |
| Voltage Rating | 120/277 VAC |
MORE DETAILS:
