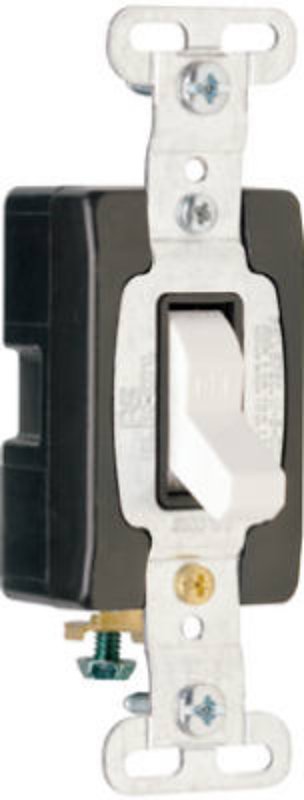

Pass & Seymour CS15AC1WCC8 Series Switch, Blue/White, 1-Poles, 15 A, 120/277 VAC, Side Wire Terminal
- Actuator Type: Cam Spring
- Color: Blue/White
- Contact Material: Silver Cadmium Oxide
- Current Rating: 15 A
- Dielectric Strength: 1500 V
- Model #: CS15AC1WCC8
- UPC #: 785007043877
- SKU: 0252494
- Application: For hospitality, lodging, multiple dwelling, office and retail applications
Product Overview
Product Details
Like our other commercial switches, these reliable performers feature high-strength polycarbonate toggles, single-piece brass alloy contact arms, nylon covers and heavy-gauge steel straps to withstand hard use and ensure a long service life. Fast make and positive break action minimizes arcing.Item Specifications
| Actuator Type | Cam Spring |
|---|---|
| Color | Blue/White |
| Contact Material | Silver Cadmium Oxide |
| Current Rating | 15 A |
| Dielectric Strength | 1500 V |
| Dimensions | 1.32 in W x 1.073 in D x 3.281 in H |
| Housing Material | Glass-Reinforced Nylon |
|---|---|
| Number of Poles | 1 |
| Temperature Rating | -40 to 115 deg C |
| Terminal Type | Side Wire |
| Voltage Rating | 120/277 VAC |
