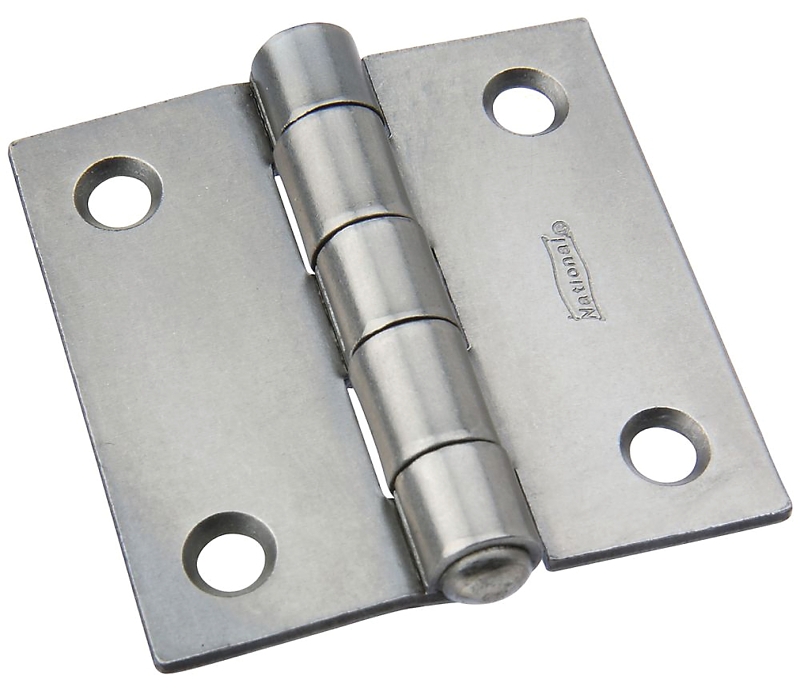

National Hardware N140-368 Utility Hinge, 2 in W Frame Leaf, 0.077 in Thick Frame Leaf, Steel, Steel, Riveted Pin, 38 lb
- Dimensions: 2 in L x 2 in W
- Door Leaf Thickness: 0.077 in
- Door Leaf Width: 2 in
- Finish: Steel
- Frame Leaf Thickness: 0.077 in
- Model #: N140-368
- UPC #: 038613140363
- SKU: 7175680
- Application: For interior use in residential applications
Product Overview
Product Details
505. Swaged for mortise installations. Manufactured with cold rolled steel. Five knuckle, full mortise design. Riveted, non-removable pin. Boxed loose barcoded.Item Specifications
| Dimensions | 2 in L x 2 in W |
|---|---|
| Door Leaf Thickness | 0.077 in |
| Door Leaf Width | 2 in |
| Finish | Steel |
| Frame Leaf Thickness | 0.077 in |
| Frame Leaf Width | 2 in |
| Hole Spacing | 1-3/8 in |
| Material | Steel |
|---|---|
| Mounting Type | Full Mortise |
| Number of Knuckles | 5 |
| Number of Mounting Holes | 4 |
| Pin Diameter | 0.19 in |
| Pin Type | Riveted |
| Weight Capacity | 38 lb |
