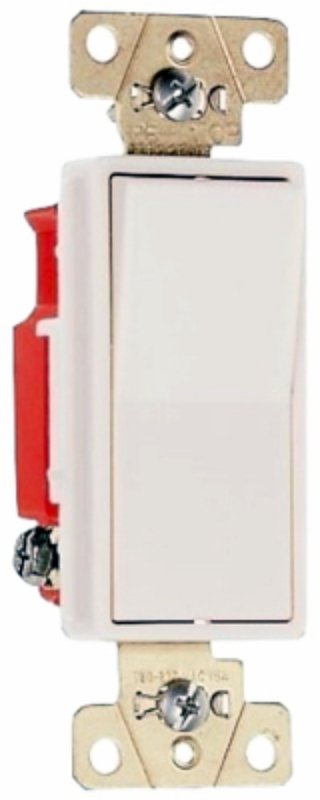

Legrand 2623LACC6 Decorator Switch, 20 A, 120/277 VAC, Back Wire, Side Wire Terminal, Light Almond
- Color: Light Almond
- Contact Material: Silver Cadmium Oxide
- Current Rating: 20 A
- Dielectric Strength: 1500 V
- Dimensions: 4.2 in H x 1.3 in W x 1.06 in D
- Model #: 2623LACC6
- UPC #: 785007858921
- SKU: 0254268
- Application: For education, hospitality, institutional, lodging, multiple dwelling, office and retail applications
Product Overview
Product Details
Cushioned thermoplastic paddles assure smooth, quiet long-term use. Integral silver alloy contacts combine with heavy-gauge straps for long-lasting performance. Screw-pressure-plate back wiring (which also supports side wiring) enables fast installation and rock-solid connections.Item Specifications
| Color | Light Almond |
|---|---|
| Contact Material | Silver Cadmium Oxide |
| Current Rating | 20 A |
| Dielectric Strength | 1500 V |
| Dimensions | 4.2 in H x 1.3 in W x 1.06 in D |
| Housing Material | Polycarbonate |
| Mounting Type | Screw |
|---|---|
| Number of Poles | 3 |
| Operating Cycles | 10000 |
| Temperature Rating | 30 deg C |
| Terminal Type | Back Wire Side Wire |
| Voltage Rating | 120/277 VAC |
