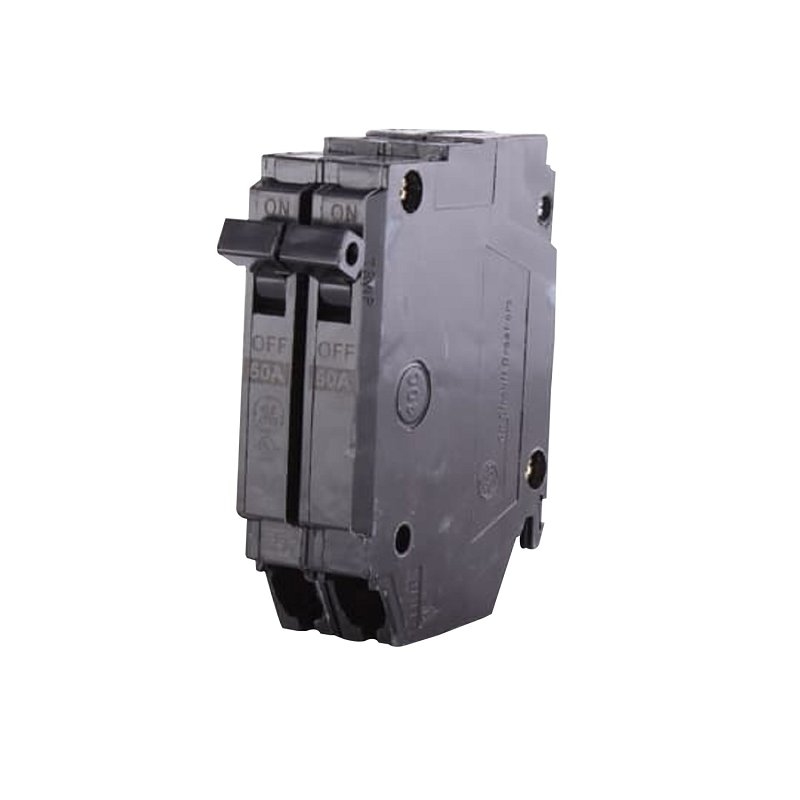

GE THQP250 Feeder Circuit Breaker, Type THQP, 50 A, 2-Pole, 120/240 V, Non-Interchangeable Trip, Plug
- Actuator Type: Toggle
- Current Rating: 50 A
- Dimensions: 3.28 in L x 1 in W x 2.58 in H
- Frame Type: Q-Line
- Interrupt Rating: 10 kA
- Model #: THQP250
- UPC #: 783164085778
- SKU: 6122337
Product Overview
Product Details
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space. 1/2 in per pole. UL listed, HACR rated. 15 to 25 A 14 to 8 Cu or 12 to 8 Al AWG wire, 30 to 50 A 8 to 4 Cu or 8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.Item Specifications
| Actuator Type | Toggle |
|---|---|
| Current Rating | 50 A |
| Dimensions | 3.28 in L x 1 in W x 2.58 in H |
| Frame Type | Q-Line |
| Interrupt Rating | 10 kA |
| Mounting Type | Plug |
| Number of Phases | 1 |
| Number of Poles | 2 |
| Operating Frequency | 50/60 Hz |
|---|---|
| Operating Temperature | 60 to 75 deg C |
| Suitable for | Reverse Feed |
| Terminal Type | Lug |
| Trip Type | Non-Interchangeable |
| Type | Type THQP |
| Voltage Rating | 120/240 V |
| Wire Size | 8 to 4 AWG |
