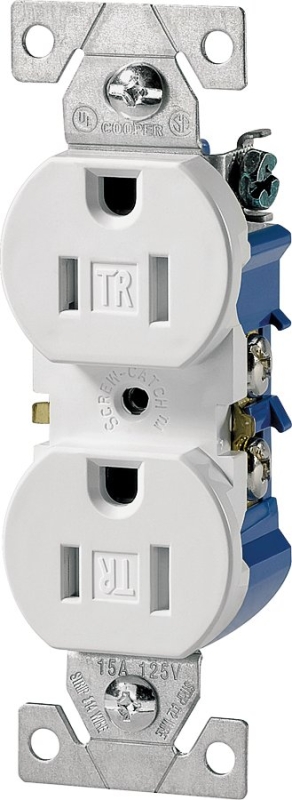

Eaton Wiring Devices TR270W Duplex Receptacle, 2 -Pole, 15 A, 125 V, Push, Side Wiring, NEMA: 5-15R, White
- Color: White
- Current Rating: 15 A
- Dimensions: 1.24 in L x 0.79 in W x 4 in H
- Material: Thermoplastic
- Mounting Type: Flush
- Model #: TR270W
- UPC #: 032664666537
- SKU: 2237527
Product Overview
Product Details
Tamper-resistant duplex receptacles provide compliance with 2011 NEC Article 406.12 that states that all receptacles installed in dwelling units must be tamper-resistant. Durable impact-resistant thermoplastic face and back body is virtually unbreakable. TR designation provides visual identification. Terminal screws are backed out and ready to wire. Extra-long and extra-wide mounting straps with patented built-in wire stripper for #14 and #12 wire to speed installation. Side-wire terminals accept up to #10 solid or stranded wire and push-in terminals accept #14 solid wire.Item Specifications
| Color | White |
|---|---|
| Current Rating | 15 A |
| Dimensions | 1.24 in L x 0.79 in W x 4 in H |
| Material | Thermoplastic |
| Mounting Type | Flush |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
|---|---|
| Number Of Wires | 3 |
| Operating Temperature | -4 to 140 deg F |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Push Side |
