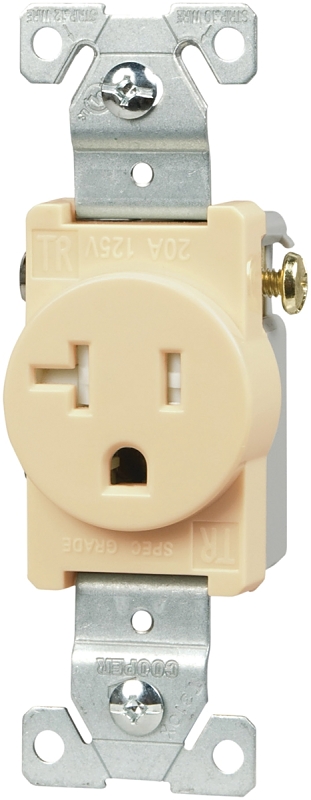

Eaton Wiring Devices TR1877V-BXSP Single Receptacle, 2 -Pole, 125 V, 20 A, Side Wiring, NEMA: NEMA 5-20, Ivory
- Color: Ivory
- Current Rating: 20 A
- Dimensions: 4.19 in L x 1.3 in W x 0.87 in D
- Material: PVC
- Mounting Type: Flush
- Model #: TR1877V-BXSP
- UPC #: 032664750229
- SKU: 9465527
- Cooper_TR1877V_BXSP_Catalog.pdf
- Cooper_TR1877V_BXSP_Brochure.pdf
- Application: For commercial and residential applications
Product Overview
Product Details
Meets all UL 498 requirements. Triple wire line contacts provide excellent long-term plug retention. Arc-resistant thermostat face. Side wire terminals accept up to #10 solid or stranded wire. Terminal screws backed out. Tamper-resistant receptacles have a UL listed shutter system. 20 A, 125 V.Item Specifications
| Color | Ivory |
|---|---|
| Current Rating | 20 A |
| Dimensions | 4.19 in L x 1.3 in W x 0.87 in D |
| Material | PVC |
| Mounting Type | Flush |
| NEMA Configuration | NEMA 5-20 |
| Number of Poles | 2 |
|---|---|
| Number Of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Side |
