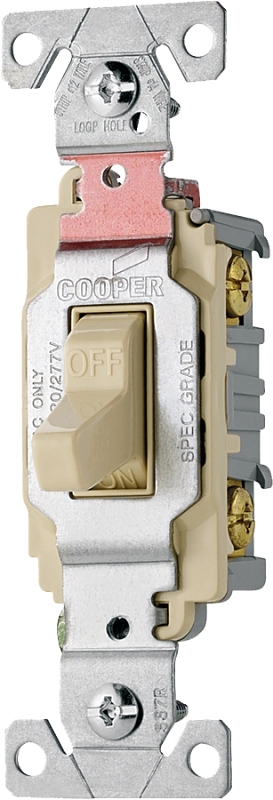

Eaton Wiring Devices CS120V Toggle Switch, 20 A, 120/277 V, Lead Wire Terminal, Nylon Housing Material, Ivory
- Actuator Type: Cam
- Color: Ivory
- Contact Material: Silver
- Current Rating: 20 A
- Dielectric Strength: 1500 V
- Model #: CS120V
- UPC #: 032664488184
- SKU: 6272025
- Application: For fluorescent lighting fixtures typical in commercial applications
Product Overview
Product Details
Side wire terminals accept up to number 10 solid or stranded wire. Rated for fluorescent lighting fixtures typical in commercial applications. 0.050 in thick steel mounting strap zinc-plated for corrosion resistance. Ground screw terminal standard. 20 A, 120/277 V. Meets all UL 20 requirements, Federal Specifications WS 896.Item Specifications
| Actuator Type | Cam |
|---|---|
| Color | Ivory |
| Contact Material | Silver |
| Current Rating | 20 A |
| Dielectric Strength | 1500 V |
| Housing Material | Nylon |
| Mounting Type | Wall |
|---|---|
| Number of Poles | 1 |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120/277 V |
| Wattage Rating | 1 to 2 hp |
