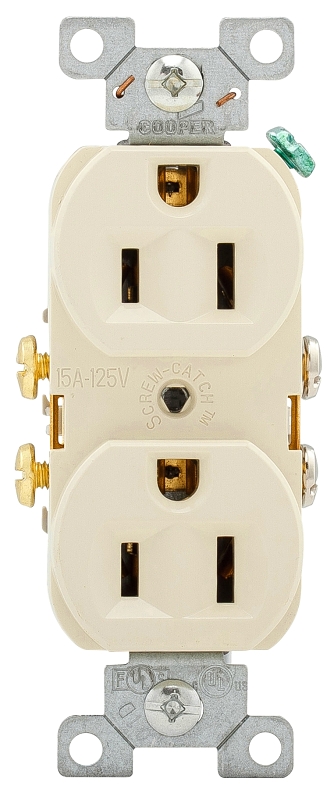

Eaton Wiring Devices CR15LA Duplex Receptacle, 2 -Pole, 15 A, 125 V, Side Wiring, NEMA: 5-15R, Light Almond
- Color: Light Almond
- Current Rating: 15 A
- Dimensions: 4 in L x 1.24 in W x 0.79 in D
- Frequency Rating: 60 Hz
- Material: PVC
- Model #: CR15LA
- UPC #: 032664583155
- SKU: 3974151
Product Overview
Product Details
Commercial specification-grade straight blade receptacles - 15 A-125 V, NEMA 5-15R. Engineered for safe, reliable performance, these UL 498 and Federal Specification WC-596 listed devices provide maximum durability in a wide variety of applications while providing installation efficiency to help finish the job on time.Item Specifications
| Color | Light Almond |
|---|---|
| Current Rating | 15 A |
| Dimensions | 4 in L x 1.24 in W x 0.79 in D |
| Frequency Rating | 60 Hz |
| Material | PVC |
| Mounting Type | Wall |
| NEMA Configuration | 5-15R |
| Number of Poles | 2 |
|---|---|
| Number Of Wires | 3 |
| Operating Temperature | -20 to 60 deg C |
| Voltage Rating | 125 V |
| Wire Size | 14 to 10 AWG |
| Wiring Type | Side |
