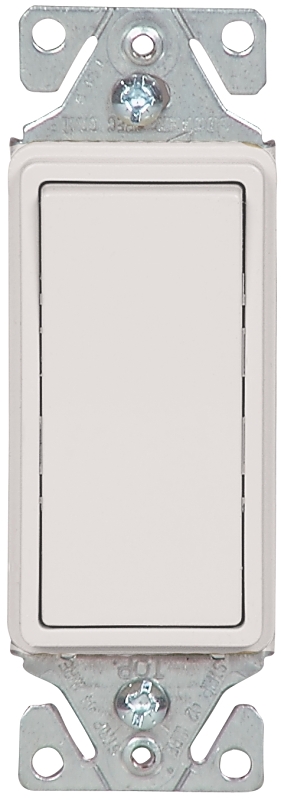

Eaton Wiring Devices 7503W-BOX Rocker Switch, 15 A, 120/277 V, 3-Way, Push Wire Terminal
- Color: White
- Contact Configuration: 3-Way
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
- Housing Material: Thermoplastic
- Model #: 7503W-BOX
- UPC #: 032664752414
- SKU: 6730311
- Cooper_Wiring_7503_Specification_Sheet.pdf
- Application: For use on fluorescent lighting fixtures and a broad variety of applications
Product Overview
Product Details
Decorator switches feature ultrasonic welding and integrated construction of the strap and body provide superior integrity. Back wire clamps on the side terminals provide for easy installation of #12 and #14 wire. Re-designed paddle for easier actuation and quiet operation. Thermoplastic rocker, top and back body are virtually unbreakable, promising years of durable performance. Tri-combo screws accept Slotted, Phillips and Robertson head tools for installation flexibility. Long, broad mounting strap virtually eliminates floating installations. Patented built-in wire stripper for #12 and #14 wire to speed installation. Stippled ground screw terminal standard. 120/277 VAC rating ideal for fluorescent lighting fixtures typical in commercial applications. Push-in terminals accept #14 solid wire.Item Specifications
| Color | White |
|---|---|
| Contact Configuration | 3-Way |
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.44 in W x 0.97 in D |
| Housing Material | Thermoplastic |
| Mounting Type | Flush |
| Number of Phases | 1 |
|---|---|
| Number of Poles | 3 |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Push Wire |
| Voltage Rating | 120/277 V |
