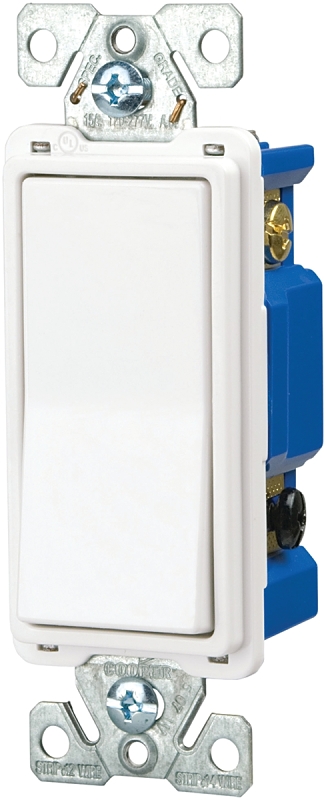

Eaton Wiring Devices 7500 7504W-BOX Rocker Switch, 15 A, 120/277 V, 4-Way, Lead Wire Terminal, White
- Color: White
- Contact Configuration: 4-Way
- Current Rating: 15 A
- Dimensions: 4.19 in L x 1.44 in W x 0.97 in D
- Housing Material: Thermoplastic
- Model #: 7504W-BOX
- UPC #: 032664643835
- SKU: 6115893
- Application: For fluorescent lighting fixtures and a broad variety of applications, apartments and condos, banks and brokerage firms, business offices or conference rooms, hotels and resorts, medical and dental practices, new home construction, residential upgrades and renovations and retail locations
Product Overview
Product Details
Ultrasonic welding and integrated construction of the strap and body. Backwire clamps on the side terminals for installation of #12 and #14 wire. Thermoplastic rocker, top and back body are virtually unbreakable. Screws accept slotted, Phillips and Robertson head tools for installation in both the USA and Canada. Longer, wider strap provides 40% more contact area to wall board. Virtually eliminates floating installations. Built-in wire stripper for #12 and #14 wire. Stippled ground screw standard. 15 A, 120/277 VAC rating for fluorescent lighting fixtures typical in commercial applications. Push in terminals accept #14 solid wire only. Temperature rating of -20 to 60 deg C. Meets flammability requirements per UL 94, 6504, V2 rated, VO rated. UL and cUL listed, meets all UL20 requirements.Item Specifications
| Color | White |
|---|---|
| Contact Configuration | 4-Way |
| Current Rating | 15 A |
| Dimensions | 4.19 in L x 1.44 in W x 0.97 in D |
| Housing Material | Thermoplastic |
| Includes | (1) Metal Strap |
|---|---|
| Mounting Type | Strap |
| Temperature Rating | -20 to 60 deg C |
| Terminal Type | Lead Wire |
| Voltage Rating | 120/277 V |
