DEWALT Screw-Bolt+ PFM1411420 Screw Anchor, 1/2 in Dia, 4 in L, Carbon Steel, Zinc
- Diameter: 1/2 in
- Drill Size: 1/2 in
- Finish: Zinc
- Head Type: Hex Washer
- Length: 4
- Model #: PFM1411420
- UPC #: 075352305042
- SKU: 4593059
- Application: For fencing/railing, glazing/window attachments, racking/shelving/material handling, repairs and maintenance, retrofits, seismic/wind, support ledgers/sill plate attachments, temporary attachments
Product Overview
Product Details

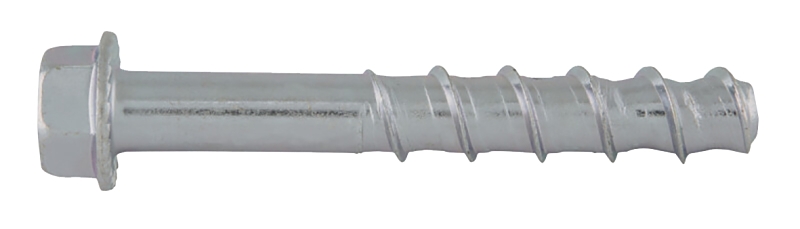

The Screw-Boltâ¢+ anchor is a one-piece, heavy-duty screw anchor with a finished hex head. It is simple to install, easy to identify and fully removable. The patented thread design, designed for use with standard ANSI drill bits, reduces installation torque and enhances productivity. The steel threads along the anchor body tap into the hole during installation to provide keyed engagement and allow for reduced edge and spacing distances. The Screw-Boltâ¢+ finish is available in bright zinc-plated and mechanically galvanized. Suitable base materials include normal weight concrete, sand lightweight concrete, concrete over steel deck, concrete masonry and solid clay brick.Item Specifications
| Diameter | 1/2 in |
|---|---|
| Drill Size | 1/2 in |
| Finish | Zinc |
| Head Type | Hex Washer |
| Length | 4 |
| Material | Carbon Steel |
|---|---|
| Minimum Clearance | 5/8 in |
| Minimum Concrete Thickness | 3 in |
| Minimum Embedment Depth | 1-3/4 in |
