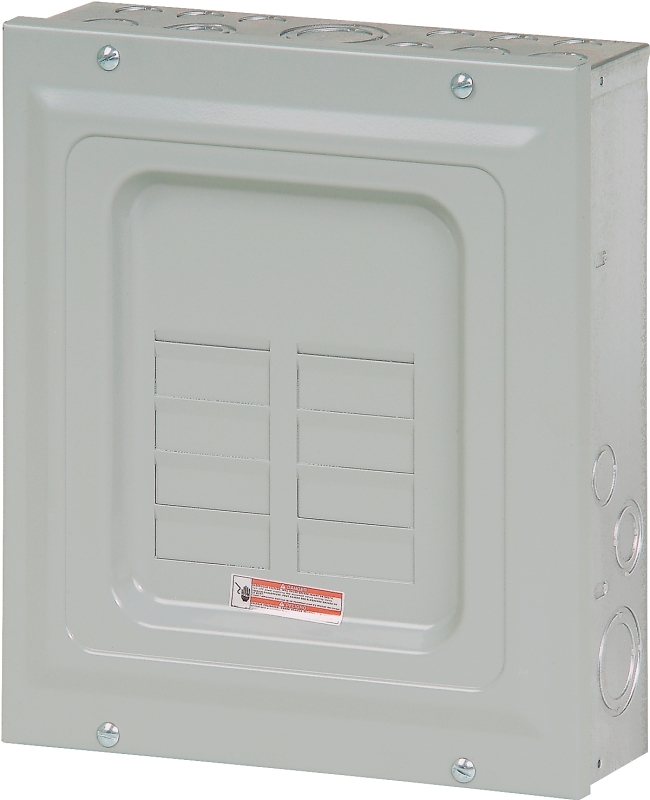

Cutler-Hammer BR Series BR612L125SP Load Center, 125 A, 6-Space, 12-Circuit, Main Lug, NEMA 1 Enclosure, Surface
- Breaker/Load Center Type: Main Lug
- Bus Bar Material: Aluminum
- Cable Size: 14 to 1 AWG
- Color: Light Gray
- Current Rating: 125 A
- Model #: BR612L125SP
- UPC #: 786676002035
- SKU: 6075386
- Application: For use as service equipment
- Warranty: 10 Years
Product Overview
Product Details
Load Centers are enclosures specifically designed to house the branch circuit breakers and wiring required to distribute power to individual circuits. They contain either a main breaker when used at the service entrance point or a main lug when used as a sub-panel to add circuits to existing service. The main breaker protects the main entire panel and can be used as a service disconnect. The branch breakers protect the wires leading to individual electrical loads such as fixtures and outlets.Item Specifications
| Breaker/Load Center Type | Main Lug |
|---|---|
| Bus Bar Material | Aluminum |
| Cable Size | 14 to 1 AWG |
| Color | Light Gray |
| Current Rating | 125 A |
| Enclosure Type | NEMA 1 |
| Interrupt Rating | 10 kA |
| Mounting Type | Surface |
|---|---|
| Number of Circuits | 12 |
| Number of Phases | 1 |
| Number Of Spaces | 6 |
| Voltage Rating | 120/240 V |
| Wiring Configuration | 3-Wire |
MORE DETAILS:
