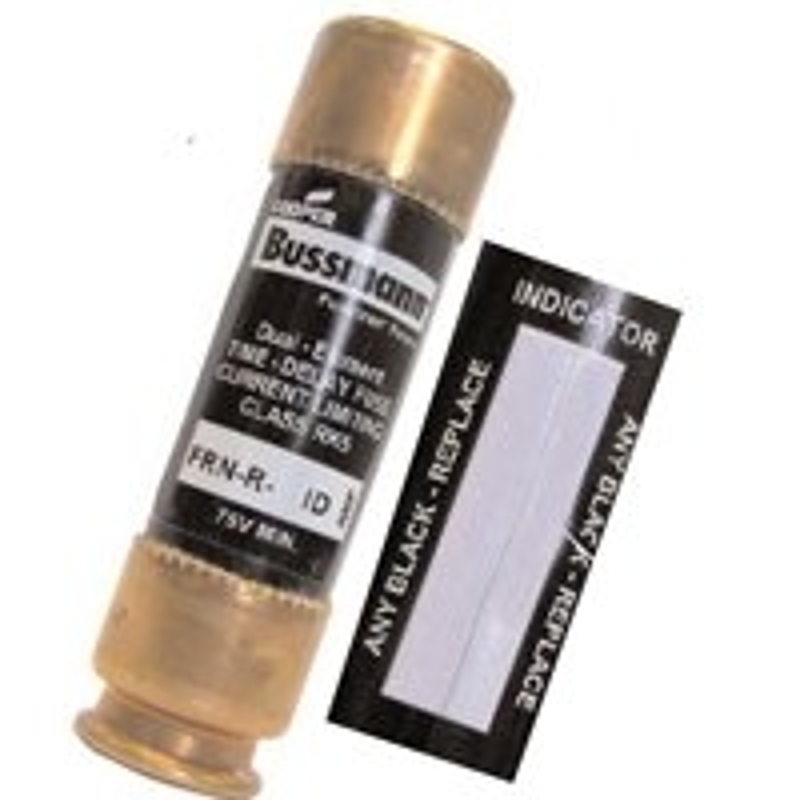

Bussmann BP/FRNR-20ID Heavy-Duty Fuse, 20 A, 250 VAC, 125 VDC, 20, 200 kA Interrupt, Fiberglass Body, H
- Body Material: Fiberglass
- Current Rating: 20 A
- Diameter: 9/16 in
- Element Type: Dual
- Fuse Group: H
- Model #: BP/FRNR-20ID
- UPC #: 051712237116
- SKU: 9462854
- Application: For protect of motors and branch circuits
Product Overview
Product Details
Bussmann Series Fusetron cartridge fuses are 23% more energy efficient and offer the best time delay performance. Their dual element feature allows closer sizing to load for superior protection of motors and transformers. These Class RK5 fuses with a 200 kA interrupting rating can be used in a broad range of applications. When sized correctly, they help protect motors from burnout caused by overloads or single phasing. The time delay feature allows the initial startup current surge for typical motors to pass, but opens prior to motor burnout when longer, dangerous overloads are present.Item Specifications
| Body Material | Fiberglass |
|---|---|
| Current Rating | 20 A |
| Diameter | 9/16 in |
| Element Type | Dual |
| Fuse Group | H |
| Fuse Type | Open Time Delay |
| Interrupt Rating | 20 200 kA |
|---|---|
| Length | 2 in |
| Rejection/Non-Rejection | Rejection |
| Terminal Type | Ferrule |
| Voltage Rating | 250 VAC 125 VDC |
