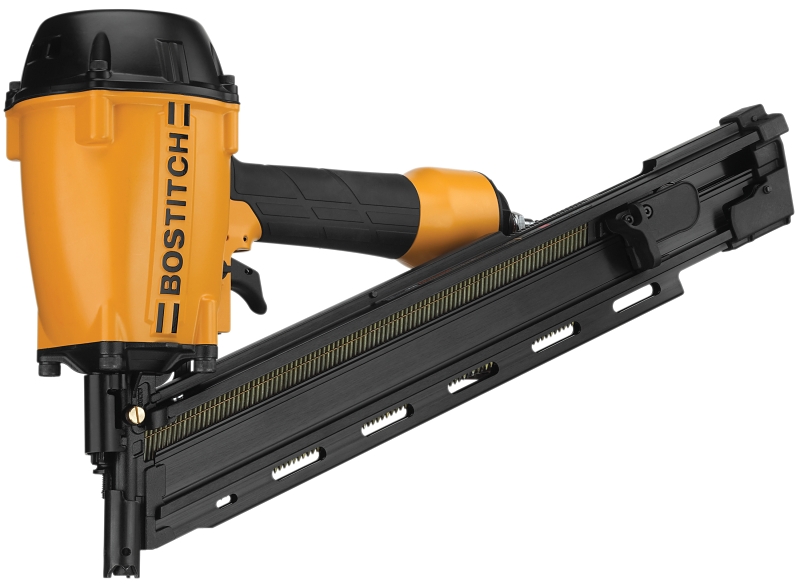

Bostitch BTF83WW Framing Nailer, 100 Magazine, 28 deg Collation, Wire Weld Collation, 6.4 cfm/Shot Air
- Air Consumption: 6.4 cfm/Shot
- Air Inlet Size: 3/8 in
- Air pressure: 70 to 120 psi
- Collation Angle: 28 deg
- Collation Type: Wire Weld
- Model #: BTF83WW
- UPC #: 077914061960
- SKU: 5874920
- Bostitch_BTF83PL_Manual.pdf
- Application: For high volume framing and sheathing applications
Product Overview
Product Details
Bostitch Framing Nailer, 3/8 in Air Inlet, Air Consumption: 6.4 cfm/Shot, Air Pressure: 70 to 120 psi, Magazine Capacity: 100, Magazine Loading: Top, Collation Angle: 28 deg, Collation Type: Wire Weld, Exhaust Type: Fixed, Fastener Size: 0.113 to 0.131 in Dia x 2 to 3-1/4 in L, Triggering Mode: Tool-Free Selectable, Ergonomic Handle, Housing Material: Magnesium, Yellow, Dimensions: 20-1/2 in L x 5-3/4 in W x 12-3/4 in H, Includes: 3/8 in NPT Male PlugItem Specifications
| Air Consumption | 6.4 cfm/Shot |
|---|---|
| Air Inlet Size | 3/8 in |
| Air pressure | 70 to 120 psi |
| Collation Angle | 28 deg |
| Collation Type | Wire Weld |
| Color | Yellow |
| Dimensions | 20-1/2 in L x 5-3/4 in W x 12-3/4 in H |
| Exhaust Type | Fixed |
| Fastener Size | 0.113 to 0.131 in Dia x 2 to 3-1/4 in L |
|---|---|
| Handle Type | Ergonomic |
| Housing Material | Magnesium |
| Includes | 3/8 in NPT Male Plug |
| Magazine Capacity | 100 |
| Magazine Loading | Top |
| Triggering Mode | Tool-Free Selectable |
